Motor Driver Module
Showing all 14 results
- Electronic Parts, Module, Motor Driver Module
A3967 Stepper Motor Driver Module
5 in stock- Power supply: 7V to 30V.
- The higher the voltage, the higher the torque at high speeds.
- Adjustable current control from 150mA/phase to 750mA/phase.
- Logic voltage: 5V or 3.3V.
- A3967 microstepping driver.
SKU: EAP-000424 - Electronic Parts, Module, Motor Driver Module
A4988 Stepper Motor Driver Module
4 in stock- Five different micro-steps
- Full step
- Half step
- Quarter step
- Eight steps
- Sixteen steps
- Direction control
- Overcurrent and over-temperature protection
- Adjustable current limit
- Short to ground
- Shorted load protection
- Automatically selects the correct current delay
SKU: EAP-000423 - Five different micro-steps
- Electronic Parts, Module, Motor Driver Module
CNC Shield V3
4 in stock- Latest Arduino CNC Shield Version 3.10
- GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- Coolant enable
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
SKU: EAP-000701 - Electronic Parts, Module, Motor Driver Module
DRV8833 2 Channel Motor Driver Module
5 in stock- Dual-H-bridge motor driver:
- Operating voltage: 2.7 V to 10.8 V
- Output current: 1.2 A continuous (2 A peak) per motor.
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
- 3V- and 5V Logic Voltage compatible
- Under-voltage lockout and protection against over-current and over-temperature.
- Reverse-voltage protection circuit.
- Current limiting can be enabled by adding sense resistors.
SKU: EAP-000877 - Electronic Parts, Module, Motor Driver Module
L293D Mini Motor Driver Module
2 in stock- New L293D motor shield, the input voltage DC4.5-25V
- 600mA output current capability per channel
- 1.2A peak output current(non-repetitive) per channel
- Enable facility
- Overtemperature protection
- Logical “0” input voltage up to 1.5V(High noise immunity)
SKU: EAP-000757 - Electronic Parts, Module, Motor Driver Module
TMC2208 Stepper Motor Driver Module
22 in stock- Voltage range: 3.3-5V
- Maximum current: 1.2A per phase (continuous, with cooling), 2A peak per phase
- Works with 3.3V and 5V signals
- Comes with heatsink for better cooling
- Has StealthChop technology for quieter stepper motors
- Has SpreadCycl technology for smoother movements
SKU: EAP-000747 - Electronic Parts, Module, Motor Driver Module
IRF520 MOSFET Driver Module
5 in stock- Voltage: 3.3 – 5V.
- Ports: Digital Level.
- Output load voltage: 0-24 V.
- Output load current: <5A (1A above need to add heat sink).
- Platform: Arduino, MCU, ARM, raspberry pi.
- Using original IRF520 Power MOS, you can adjust the output PWM
SKU: EAP-000120 - Electronic Parts, Module, Motor Driver Module

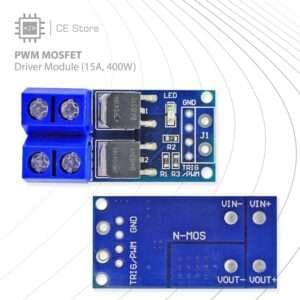

PWM MOSFET Driver Module (15A, 400W)
32 in stock- Operating Voltage (VDC): 5 ~ 36V
- Peak Current (A): 30A
- Continuous Current (A) : 15A
- No. of Channels: 1
- Battery Protection Mode: No
- Operating temperature: -40 ~ +85
- Cooling Fan: No
- Arduino Shield: No- can be used with Wire connection
- Speed Control: Yes
- Polarity Protection: NO
SKU: EAP-000130
