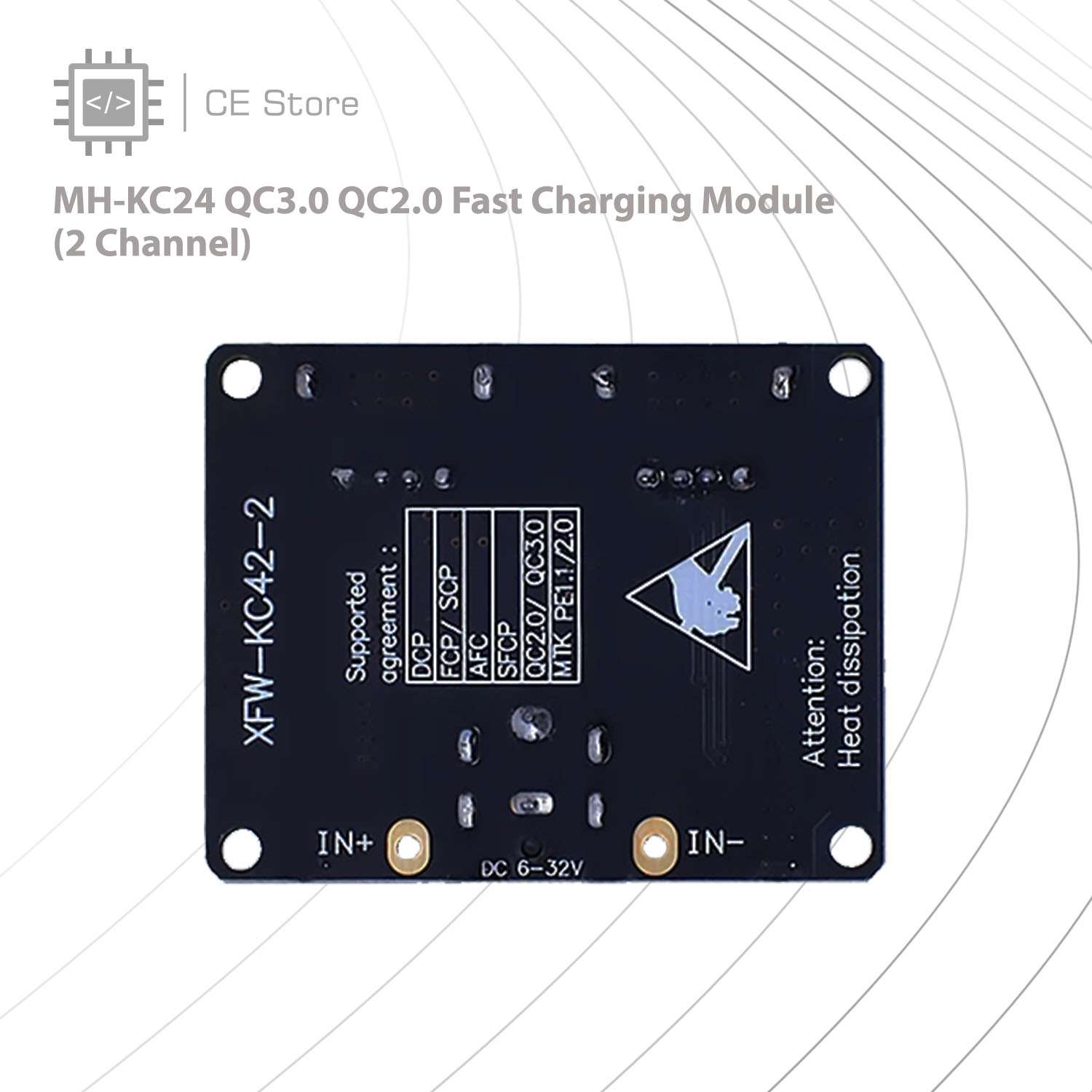

MH-KC24 QC3.0 QC2.0 Fast Charging Module (2 Channel)
Availability:
In stock
The MH-KC24 QC3.0 QC2.0 Fast Charging Module (2 Channel) is a highly efficient DC-DC buck converter designed to provide fast USB charging for mobile devices, supporting multiple fast charging protocols. This module accepts a wide input voltage range and features two independent USB ports for simultaneous charging.
8,500 Ks
In stock
Features and Specifications
- Input Voltage Range : 6V to 32V DC.
- Output Voltage : Default is 5V, automatically adjusting between 3V and 12V when a fast-charging protocol is triggered.
- Output Power : Up to 24W (e.g., 5V/3.4A, 9V/2.5A, 12V/2A) per channel.

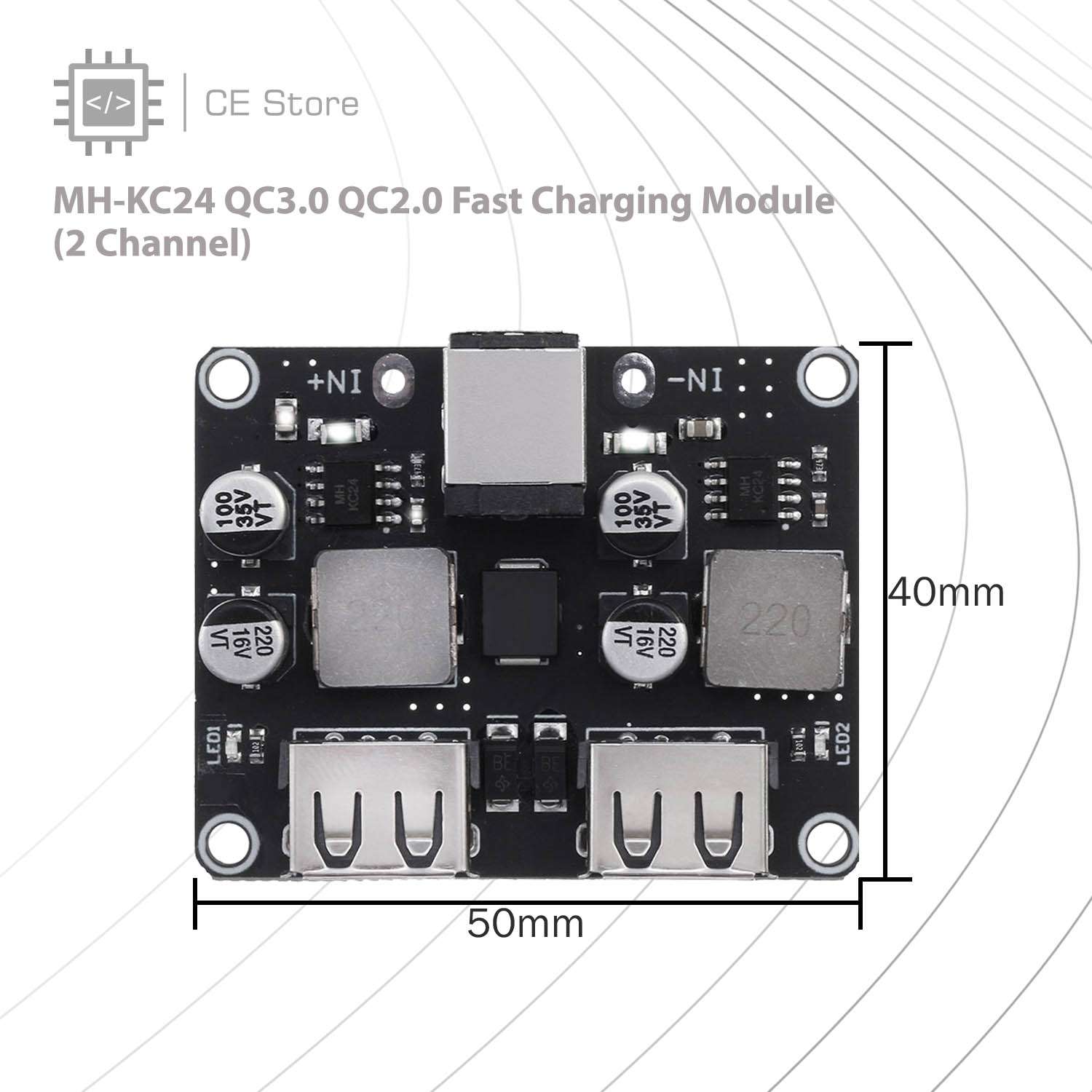

- Channels : Equipped with two independent USB Type-A female ports for simultaneous charging of two devices.
- Conversion Efficiency : High efficiency ranging from 90% to 97%.
- Integrated IC : Based on the IP6505 integrated circuit.
- Protection Functions : Includes built-in protection against input overvoltage and undervoltage, input overcurrent, output overcurrent, short circuit, and over-temperature.
Applications
The MH-KC24 module is versatile and suitable for various projects and scenarios:
- Portable Power : Used in DIY power banks and smart power strips.
- Renewable Energy : Suitable for charging mobile phones from solar panels.
- Home Automation : Can be integrated into household power supplies and intelligent plug-in modifications.
