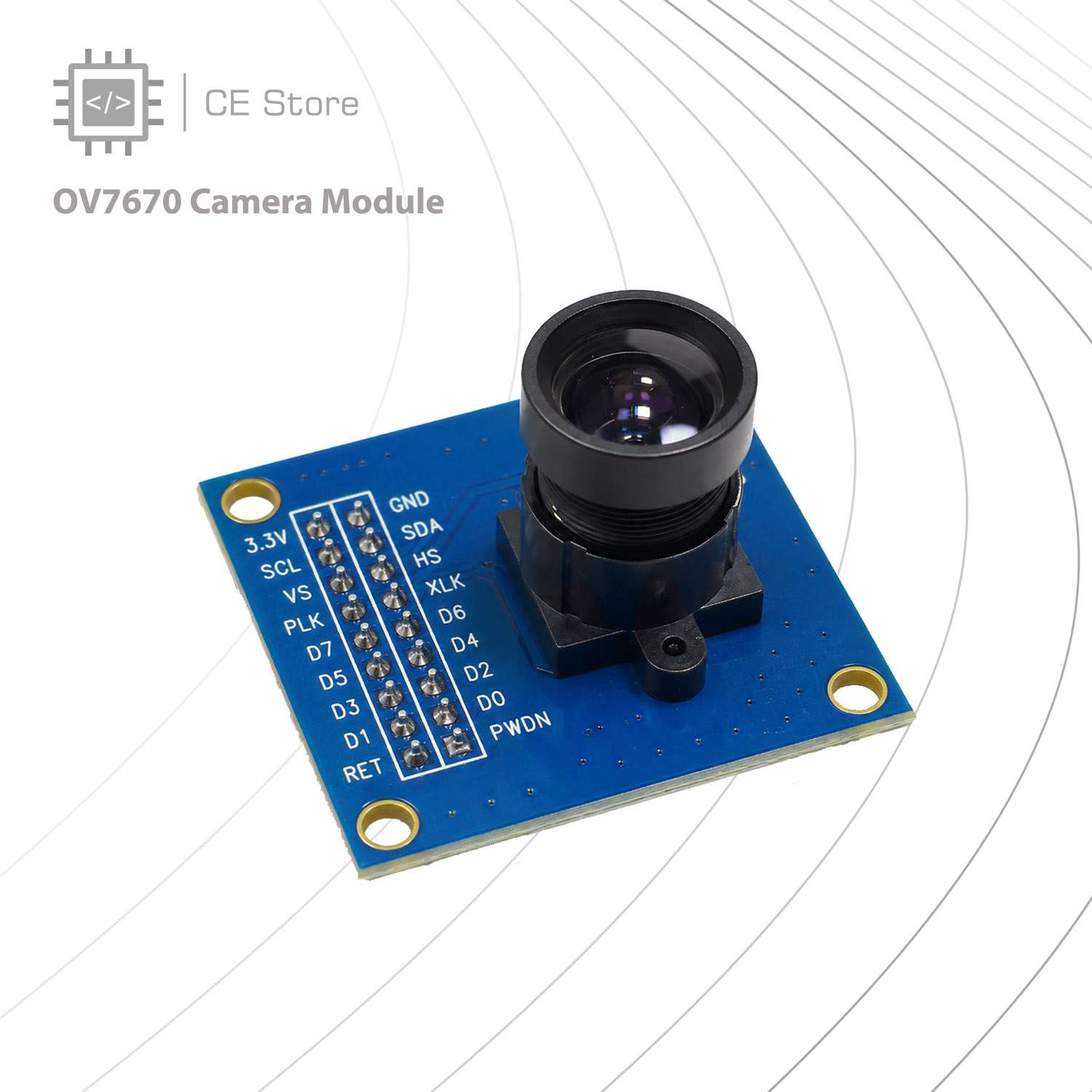

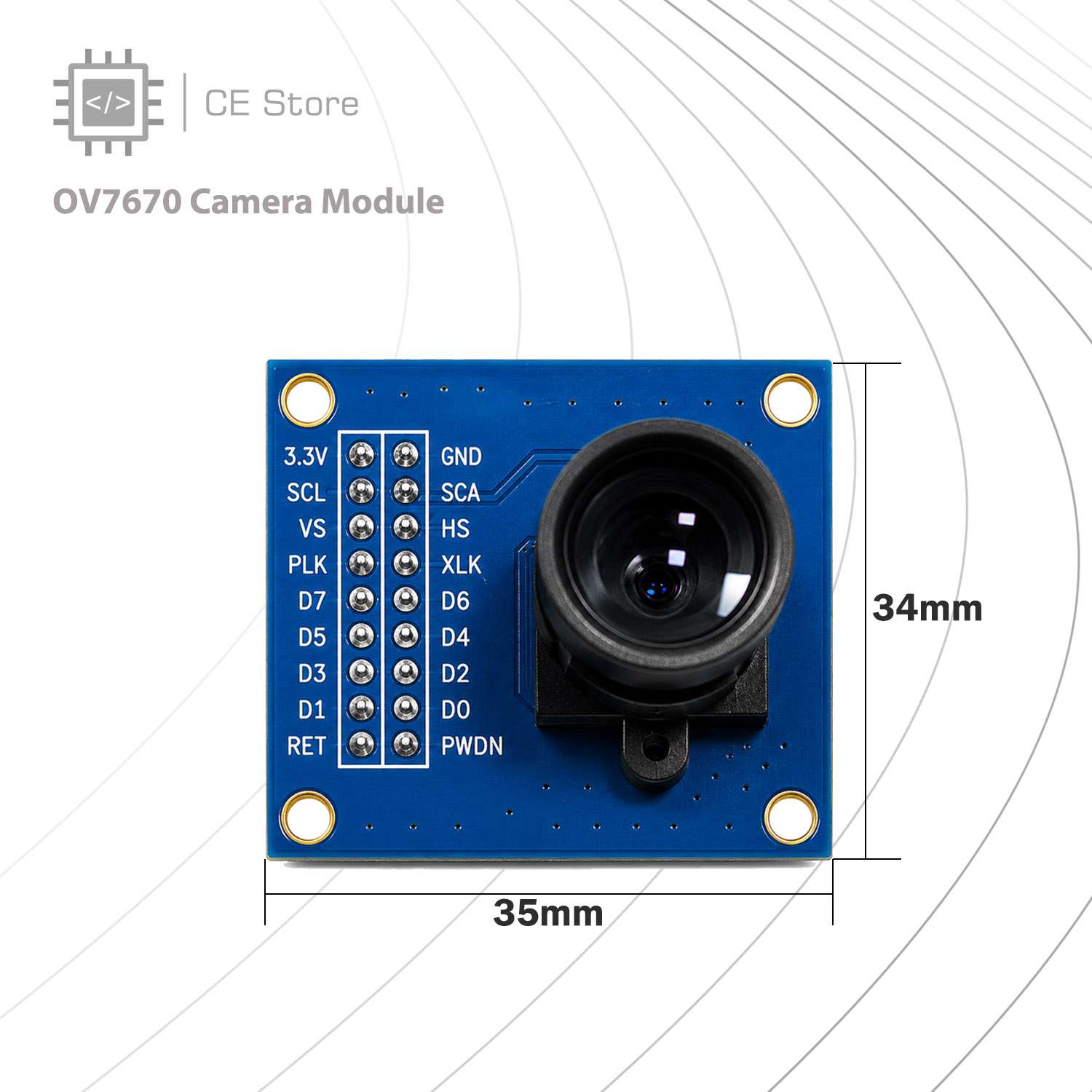

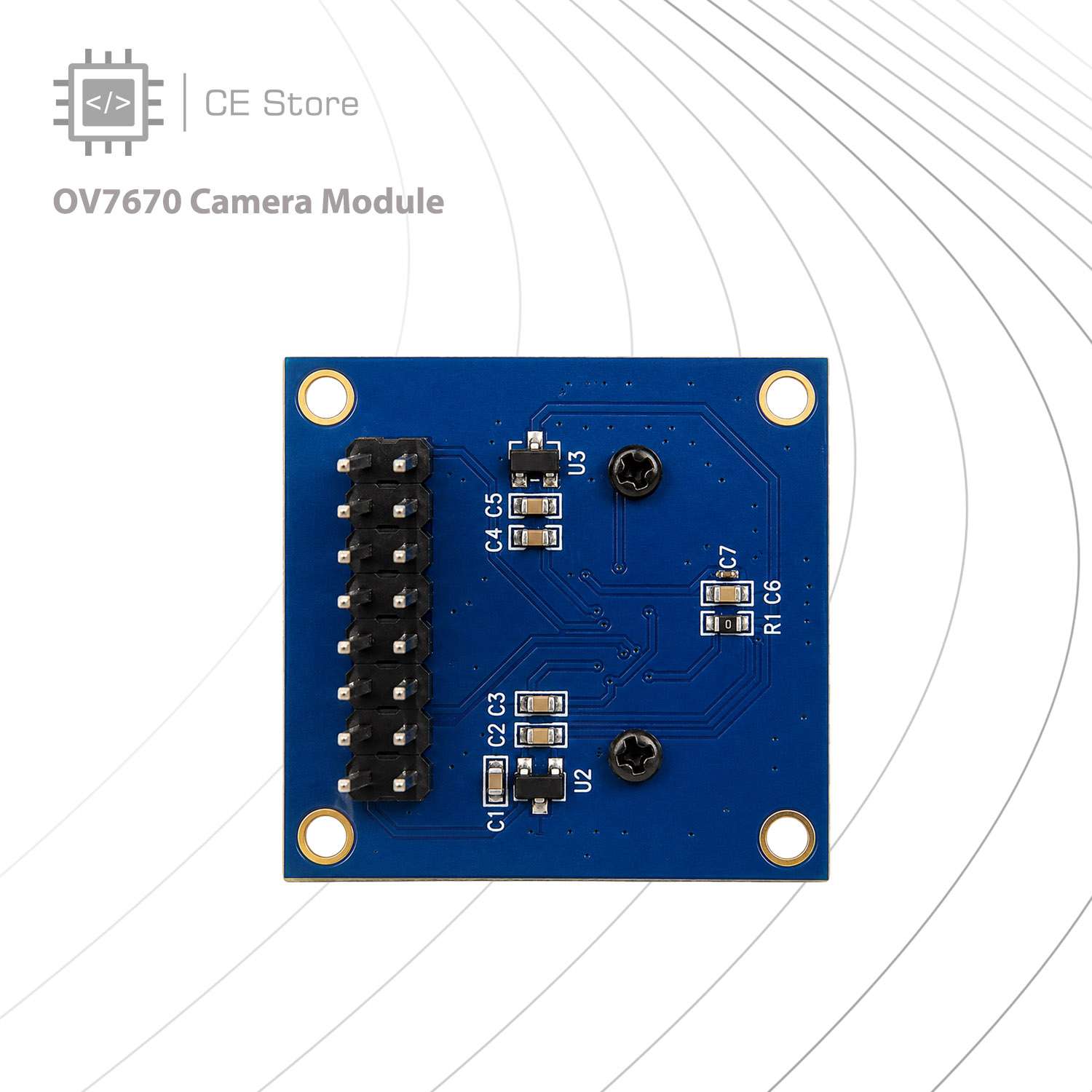

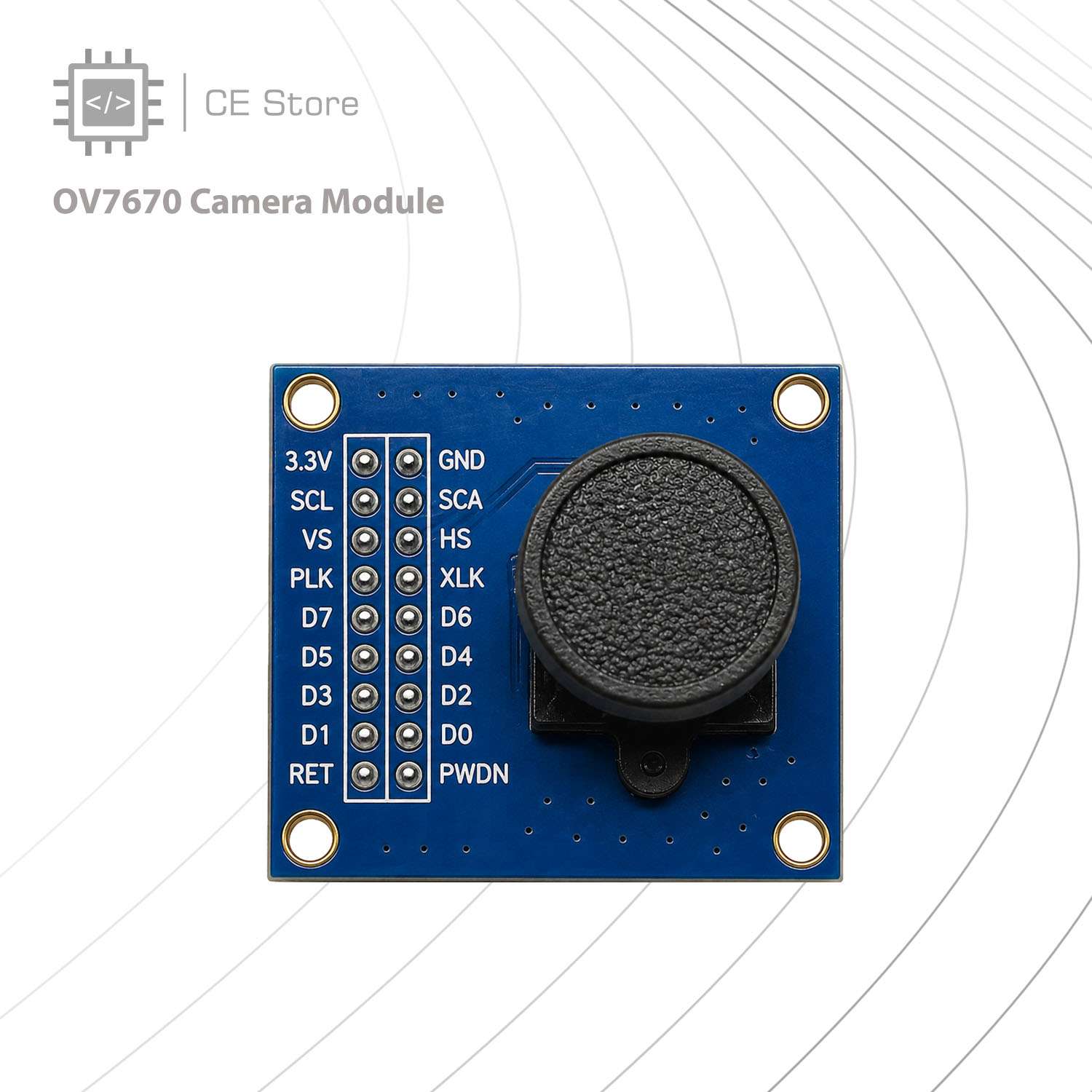

OV7670 Camera Module
Availability:
Out of stock
The OV7670 Camera Module is a compact, low-cost CMOS image sensor designed for embedded vision and image capture applications. It features the OV7670 VGA camera sensor, capable of capturing images at a maximum resolution of 640 × 480 (VGA). The module communicates through an 8-bit parallel data interface and is configured via the SCCB (I²C-compatible) interface, making it suitable for Arduino, STM32, ESP32 (with parallel camera support), FPGA, and other microcontroller development platforms.This module is widely used in DIY electronics, machine vision, robotics, image processing, and computer vision projects where an affordable camera solution is required.
10,200 Ks
Out of stock
Features
- VGA (640 × 480) CMOS camera module.
- Low-cost solution for embedded imaging applications.
- Supports multiple image output formats including RGB565, YUV, and Bayer RAW.
- Built-in automatic exposure, white balance, and gain control.
- Standard SCCB (I²C-compatible) interface for camera configuration.
- 8-bit parallel data output for high-speed image transfer.
- Compatible with Arduino (advanced projects), STM32, ESP32 (parallel camera support), FPGA, and other development boards.
- Compact size for robotics, IoT, smart devices, and vision-based projects.
- Ideal for image acquisition, object detection, machine vision, and educational electronics projects.
- Sensor: OmniVision OV7670 CMOS Image Sensor
- Maximum Resolution: 640 × 480 (VGA)
- Pixel Count: 0.3 Megapixel
- Lens: Fixed Focus
- Interface:
- 8-bit Parallel Data Bus (D0–D7)
- SCCB (I²C-Compatible) Configuration Interface
- Operating Voltage:3.3V DC
- Pixel Clock (PCLK): Up to 24MHz
- Frame Rate:Up to 30fps (VGA)
- Image Control:
- Automatic Exposure (AEC)
- Automatic Gain Control (AGC)
- Automatic White Balance (AWB)
- PCB Color: Blue
