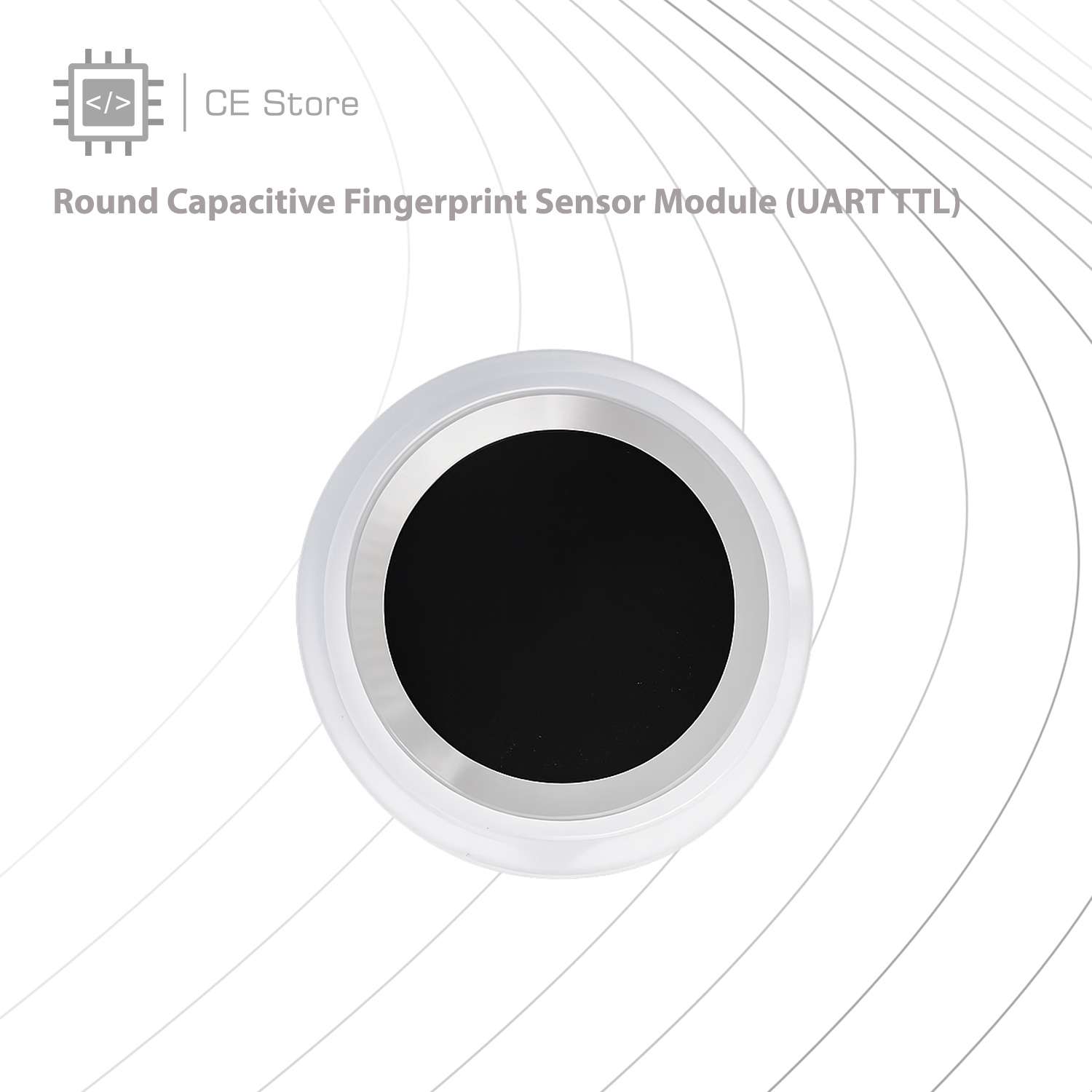

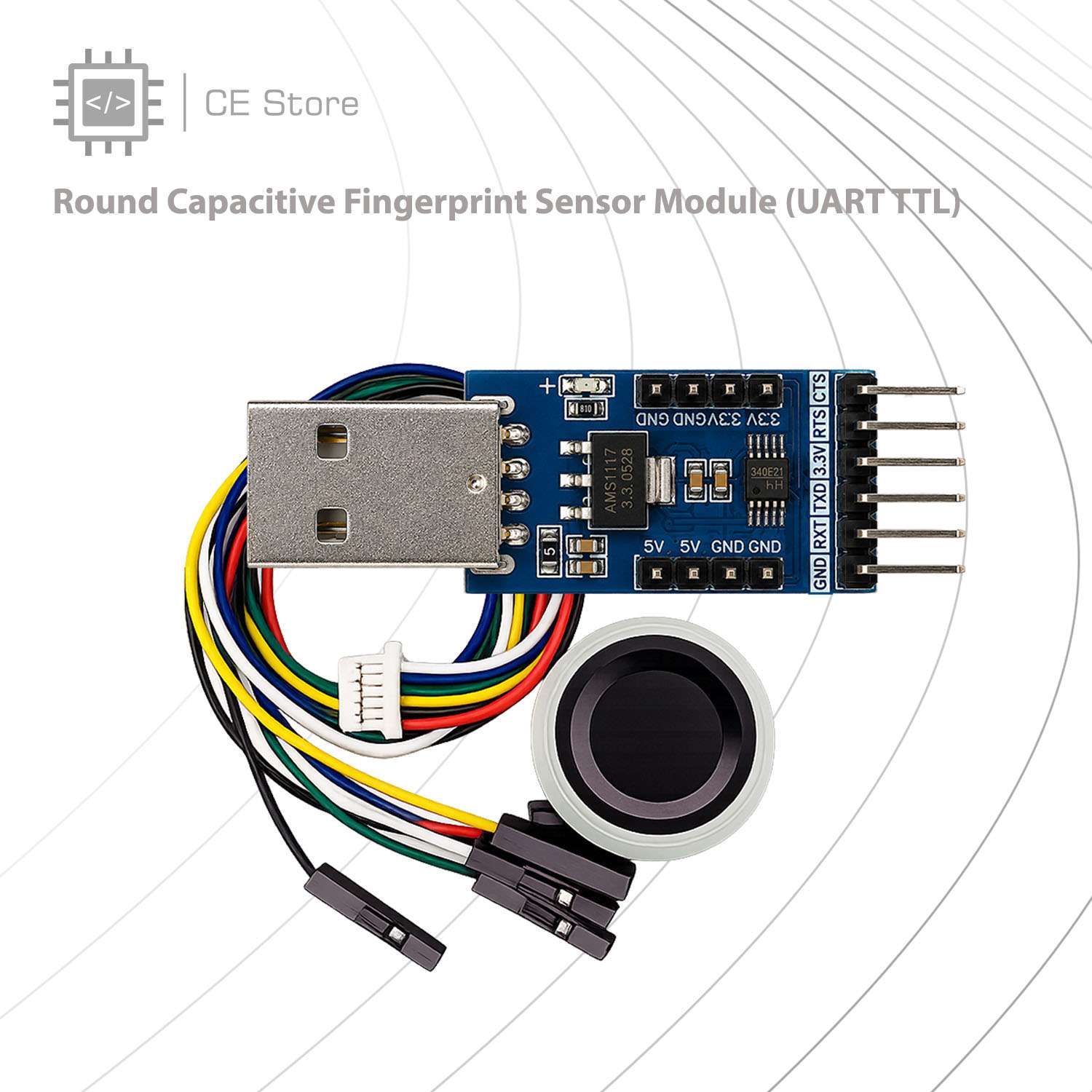

Round Capacitive Fingerprint Sensor Module (UART TTL)
Availability:
Out of stock
The Round Capacitive Fingerprint Sensor Module is a compact biometric fingerprint recognition module designed for fingerprint identification, verification, and access-control applications. It integrates a capacitive fingerprint sensor with an internal fingerprint processing and recognition algorithm, allowing the module to capture and process fingerprints directly without requiring an external image-processing system. The module communicates with a host microcontroller through a 3.3V TTL UART interface and supports up to 200 fingerprint templates. Its compact round design makes it suitable for embedded applications such as smart locks, access control systems, attendance devices, safes, cabinets, and security equipment.
59,300 Ks
Out of stock
Features
- Capacitive fingerprint sensing technology
- 508 DPI fingerprint resolution
- 192 × 192 pixel sensing array
- Supports up to 200 fingerprint templates
- Built-in fingerprint image processing algorithm
- Supports 1:1 fingerprint verification
- Supports 1:N fingerprint identification
- Fast fingerprint acquisition
- Scanning speed of less than 0.2 seconds
- Verification speed of less than 0.3 seconds
- 3.3V TTL UART communication interface
- Built-in finger/touch detection
- Very low touch-detection standby current
- Compact round design
- Approx. Ø22 mm outer diameter
- Approx. 6.5 mm thickness

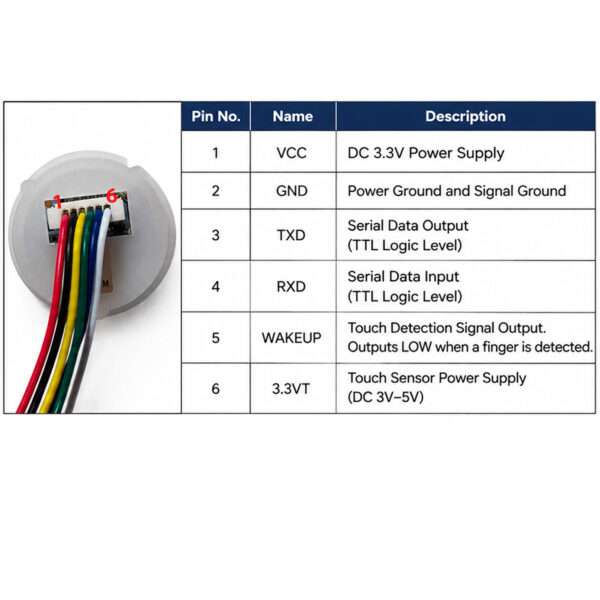

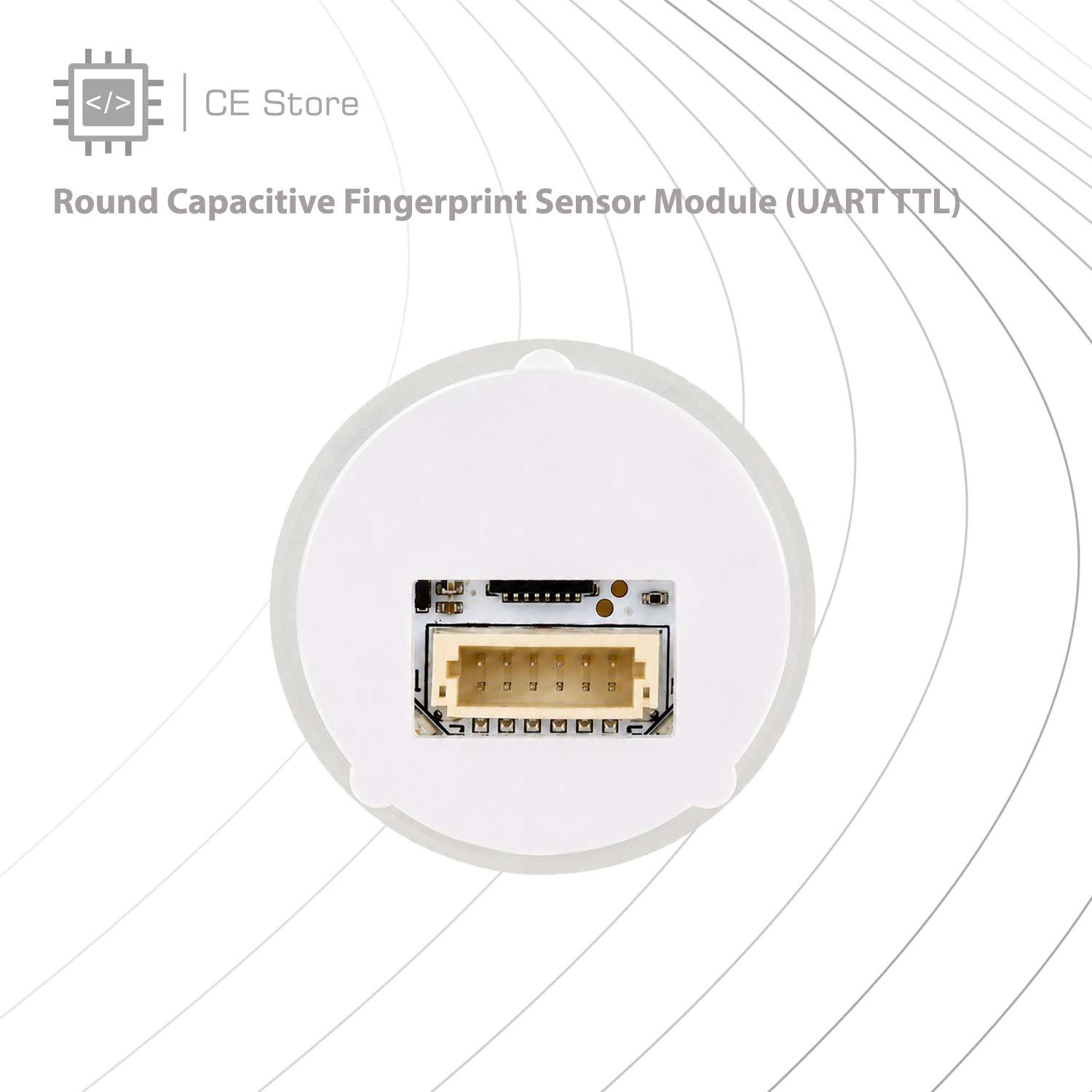

- 6-pin connector
- Up to 15 kV ESD protection
- Suitable for embedded biometric applications
Interface
UART TTL
The module communicates with a microcontroller through a UART TTL serial interface.
Typical UART communication parameters:
| Parameter | Value |
|---|---|
| Interface | UART TTL |
| Logic Level | 3.3V TTL |
| Baud Rate | 9,600–115,200 bps |
| Default Baud Rate | 57,600 bps* |
| Data Bits | 8 |
| Communication | Serial |
Compatibility
The 3.3V TTL UART interface makes the module suitable for integration with microcontrollers and embedded systems such as:
- Arduino
- ESP32
- STM32
- AVR
- 8051
- Other 3.3V UART-compatible MCU systems
- Operating Voltage: DC 3.3V
- Interface: UART / TTL
- Output: TTL Serial Data
- Resolution: 508 DPI
- Sensing Array: 192 × 192
- Fingerprint Capacity: 200
- Working Current: Approx. 20 mA
- Standby Current: Approx. 2 µA
- Matching: 1:1 / 1:N
- Scanning Speed: < 0.2 s
- Verification Speed: < 0.3 s
- Effective Area: Ø15 mm
- Diameter: Approx. Ø22 mm
- Thickness: Approx. 6.5 mm
- Baud Rate: 57600 bps Default
