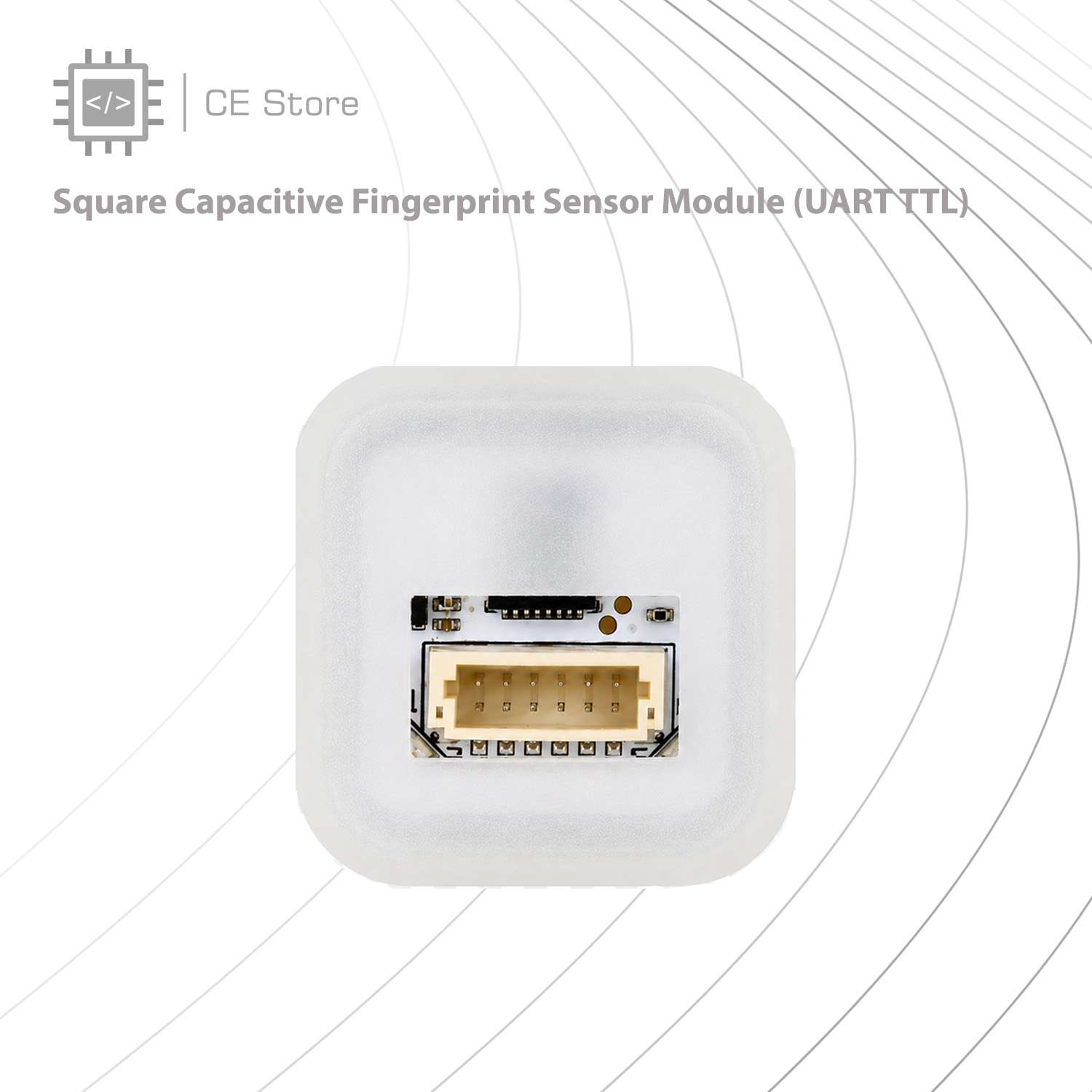

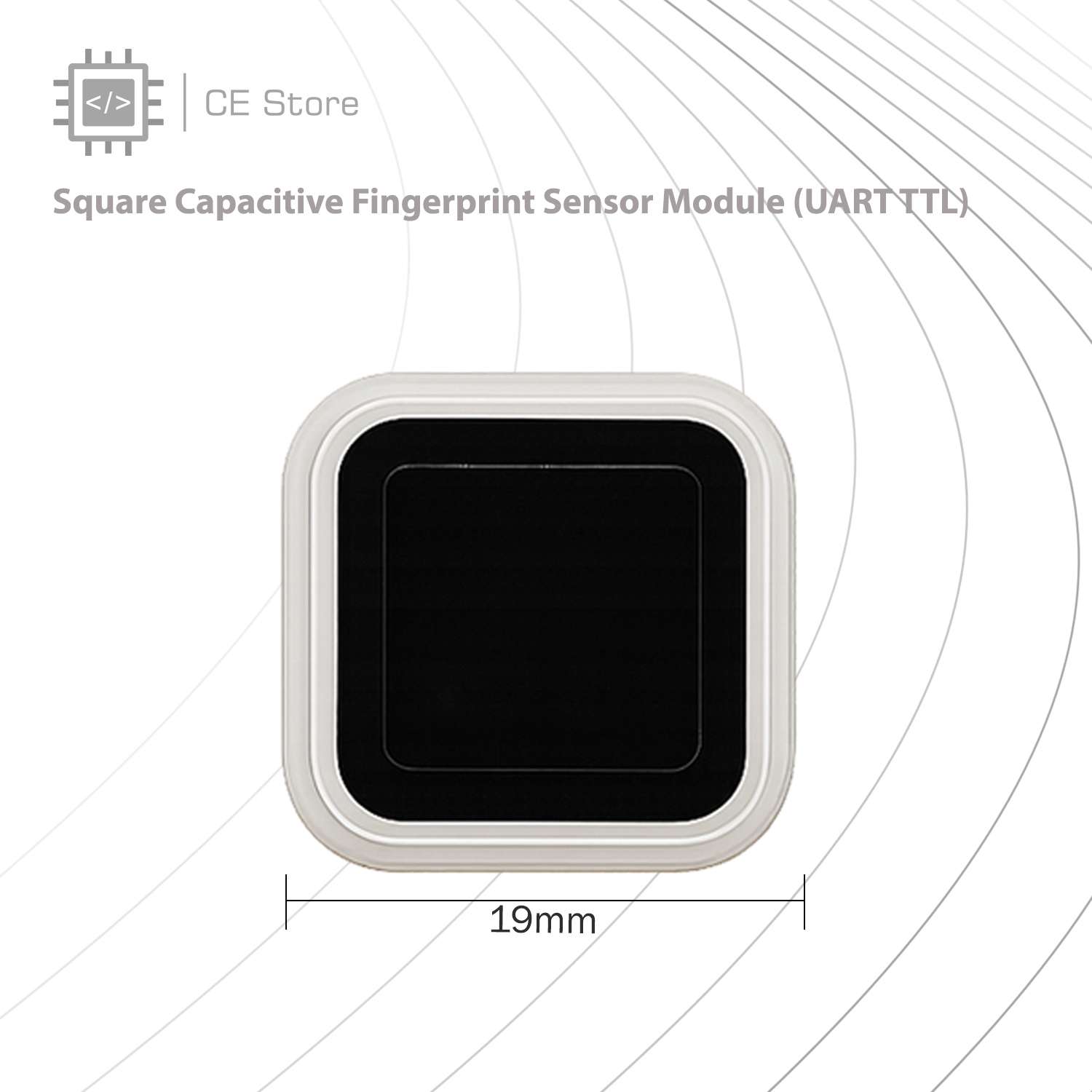

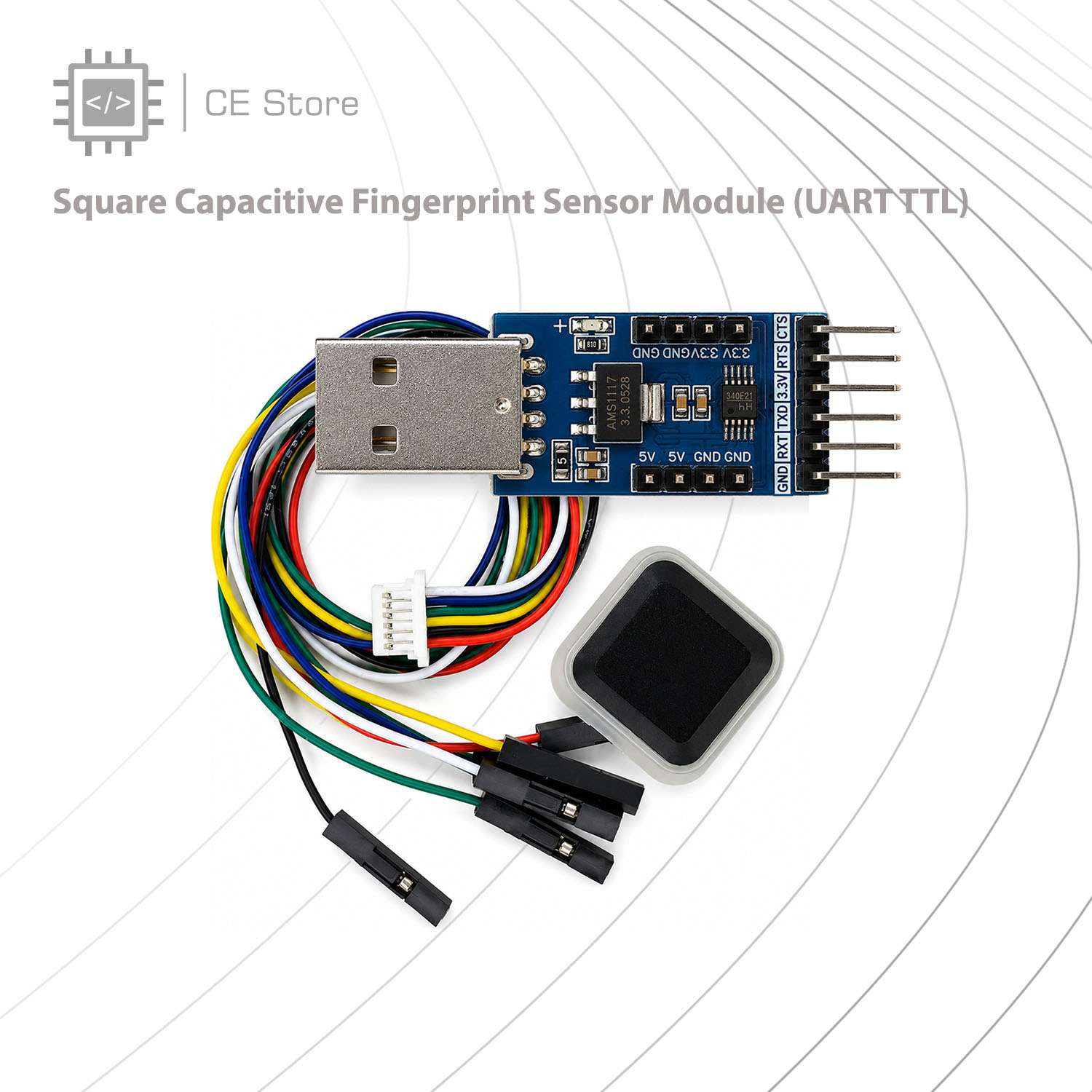

Square Capacitive Fingerprint Sensor Module (UART TTL)
Availability:
In stock
The Square Capacitive Fingerprint Sensor Module is a compact biometric fingerprint recognition module that integrates a capacitive fingerprint sensor with an internal fingerprint processing algorithm. It communicates with a host microcontroller through a UART TTL interface and supports fingerprint enrollment, template storage, fingerprint matching, and identification. Its compact square form factor and low-power design make it suitable for embedded security and biometric applications. The module is designed for easy integration with microcontrollers and electronic control systems where fingerprint authentication is required.
53,100 Ks
In stock

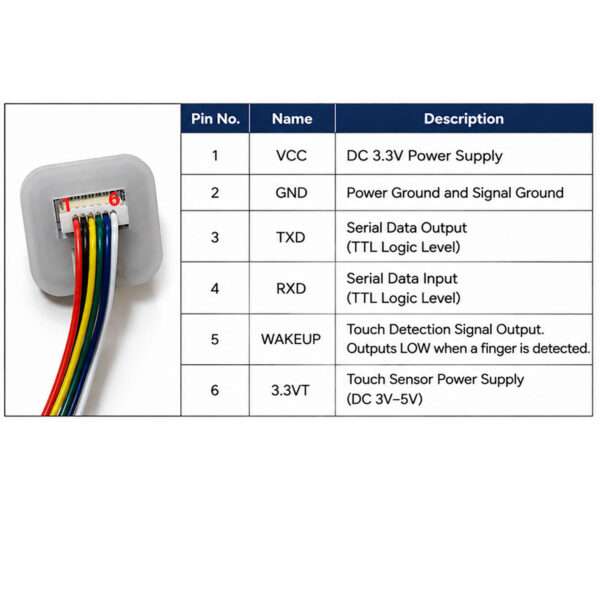

Interface
UART TTL
The module communicates with a microcontroller through a UART TTL serial interface.
Typical UART communication parameters:
| Parameter | Value |
|---|---|
| Interface | UART TTL |
| Logic Level | 3.3V TTL |
| Baud Rate | 9,600–115,200 bps |
| Default Baud Rate | 57,600 bps* |
| Data Bits | 8 |
| Communication | Serial |
Features
- Capacitive semiconductor fingerprint sensor
- Compact square design
- 508 DPI fingerprint resolution
- 120 × 88 pixel image resolution
- Supports up to 100 fingerprint templates
- Built-in fingerprint processing algorithm
- Supports 1:1 verification
- Supports 1:N identification
- Fast fingerprint recognition
- Approx. 0.3 second recognition speed at 100 fingerprints
- UART TTL communication interface
- 3.3V DC operating voltage
- Built-in RGB LED indicator
- Low-power design
- High ESD protection
- Scratch-resistant sensing surface
- Suitable for embedded biometric applications
Compatibility
The UART TTL interface allows the fingerprint module to communicate directly with compatible microcontrollers such as:
- Arduino
- ESP32
- STM32
- AVR
- 8051
- Other 3.3V TTL UART MCU systems
- Operating Voltage: Â DC 3.3V
- Output Type: UART TTL
- Interface: UART
- Resolution: 508 DPI
- Image Size: 120 × 88 pixels
- Fingerprint Capacity: 100
- Baud Rate: 9,600–115,200 bps
- Default Baud Rate: 57,600 bps*
- Matching: 1:1 / 1:N
- Recognition Speed: Approx. 0.3 s
- ESD Protection: ±8 kV Contact / ±15 kV Air
- Operating Temperature: -20°C to +55°C
- Interface Logic: 3.3V TTL
