Component, Electronic Parts, Relay

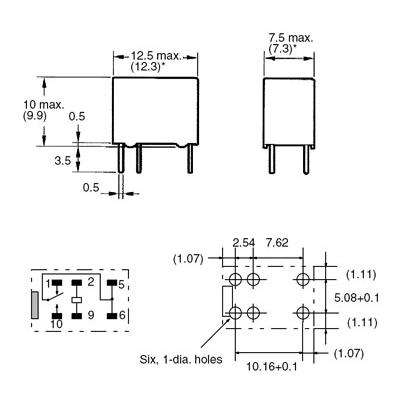

G5V-1 OMRON Relay (12VDC)
Availability:
Out of stock
- Series: G5V-1
- Coil Voltage: 12V DC
- Coil Current: 12.5 mA
- Coil Resistance: 960 Ohms
- Coil Type: Non-Latching
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 1 A
- Switching Voltage: 125 VAC, 60 VDC (Max)
- Load – Max Switching: 125 VA, 60 W
- Must Operate Voltage: 9.6 VDC
- Must Release Voltage: 1.2 VDC
3,400 Ks
Out of stock
The Omron G5V-1-DC12 is a compact, single-pole, double-throw (SPDT) relay with a 12V DC coil.
- Series: G5V-1
- Coil Voltage: 12V DC
- Coil Current: 12.5 mA
- Coil Resistance: 960 Ohms
- Coil Type: Non-Latching
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 1 A
- Switching Voltage: 125 VAC, 60 VDC (Max)
- Load – Max Switching: 125 VA, 60 W
- Must Operate Voltage: 9.6 VDC
- Must Release Voltage: 1.2 VDC
- Operate Time: 5 ms
- Release Time: 5 ms
- Operating Temperature: -40°C to 70°C
- Contact Material: Silver (Ag), Gold (Au)
- Termination Style: PC Pin
- Seal Rating: Sealed – Fully
- Approval Agency: CSA, UR
