Motor
Showing all 22 results
- Electrical, Electrical & Mechanical, Mechanical, Motor, Wheels & Pulleys
2WD Smart Car Chassis Kit (Acrylic Frame)
In StockElectrical, Electrical & Mechanical, Mechanical, Motor, Wheels & Pulleys2WD Smart Car Chassis Kit (Acrylic Frame)
5 in stock- Round Plate Diameter: 135 mm
- Square Plate Size:135×90 mm
- Wheel Size (D x W) mm: 65 x 25
- Motor Type: Dual shaft-Straight, BO motor
- Motor Operating Voltage: 3 to 6V DC
- Motor Rated RPM: No Load Speed (3V) 90RPM +-10%
- Motor Gear reduction Ratio: 1:48
- Motor Rated Current: No Load Current (3V) Less Than 150mA
- Chassis Material & Color: Acrylic Transparent
- Wheel Material: Plastic with Rubber
SKU: EAP-000665 - Electrical, Electrical & Mechanical, Motor
N20 Gear Motor(DC3-6V, 60 RPM)
25 in stock- This is a DC Mini Metal Gear Motor, ideal for making robots.
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
SKU: EAP-000720 - Electrical, Electrical & Mechanical, Electronic Parts, Motor

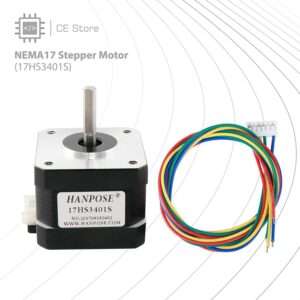

NEMA17 Stepper Motor (17HS3401)
2 in stock- Model: 17HS3401
- Phase: 2
- Step Angle (deg): 1.8
- Motor Length (mm): 34
- Rated Current (A): 1.3
- Phase Resistance (Ohm): 2.4
- Phase Inductance (mH): 2.8
- Holding Torque (N.cm): 28
- Detent Torque (N.cm): 1.6
- Rotor Inertia (g.cm2): 34
- Lead Wire (No): 4
- Motor Weight (g): 220
SKU: EAP-000447 - Electrical, Electrical & Mechanical, Electronic Parts, Motor
NEMA17 Stepper Motor (17HS4401)
1 in stock- Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
- Body Length: 40mm
- Shaft Diameter: 5mm
- Number of Wire Leads: 4
- Wire Length: 400mm
- Weight: 280g
- Temperature rise: 80deg Max(rated current, 2 phase on)
SKU: EAP-000451 - Electrical, Electrical & Mechanical, Motor
NEMA17 Stepper Motor (17HS8401)
2 in stock- The use of advanced technology reduces noise.
- Reduced automatic errors caused by the use of reduction gears.
- Made of high quality alloy material, durable and long service.
- The motor adopt 4 pin cable outlet method, easy to connect.
- Widely used in printers, surveillance equipment, textile / packaging machinery and stage lighting
SKU: EAP-000455 - Electrical, Electrical & Mechanical, Motor
Servo Tester Consistency Speed Controller
6 in stock- Operating Voltage: DC 4.8-6V
- Offer 3 modes to check servos or ESC
- The Manual Mode allows you to turn the knob to different speeds and check the reaction time
- The Neutral mode makes the servo go back to the neutral point
- The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
- Connect to up to 3 servos simultaneously
SKU: EAP-000671 - Electrical & Mechanical, Electronic Parts, Motor
SG90 Micro Servo Motor
in stockThe TowerPro SG90 servo motor is one of the most popular servo motors at the moment. This servo motor has a torque of up to 1.56 kg * cm, with which all kinds of sensors, cameras or even small robots can easily be moved.
SKU: n/a
