Showing 37–72 of 239 results
- Development Board, Electronic Parts, ESPRESSIF(ESP), Module
ESP32 Cam Baseboard (Micro)
9 in stockThe ESP32-CAM-MB Micro USB baseboard is an adapter designed to simplify programming and power supply for the standard ESP32-CAM module by providing a convenient Micro USB interface, eliminating the need for an external FTDI programmer.
SKU: EAP-001328 - Electronic Parts, Module
ESP8266 Serial Port Baseboard Lua WIFI Development Board
Out of stock- Lead-out all the IO ports of the ESP-12E development board
- Lead out the pins of 5V and 3.3V power supply
- Convenient to connect with peripheral modules
- Onboard 5V / 1A DC-DC step-down converter circuit
- Onboard power indicator
- With DC power jack 6-24V.
SKU: EAP-000759 - Electronic Parts, Module
Gas Sensor Module (MQ-135)
Out of stock- Input Voltage: 5V
- Power consumption: 150mA
- Detect/Measure: NH3, Nox, CO2, Alcohol, Benzene, Smoke
- Digital Output: TTL digital 0 and 1 ( 0.1 and 5V)
- Analog Output: 0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
- Size:32* 20* 22mm (L*W*H)
SKU: EAP-001123 - Electronic Parts, Module
GY-4725 MCP4725 I2C Digital to Analog Converter Module
5 in stockGY-4725 I2C DAC Breakout – MCP4725 digital-analogue converter module
- 12-bit resolution
- I2C Interface (Standard, Fast, and High-Speed supported)
- Small package
- 2.7V to 5.5V supply
- Internal EEPROM to store settings
SKU: EAP-001113 - Detection & Sensor Module, Electronic Parts, Module
GY-521 MPU6050 3-Axis Accelerometer Gyroscope Module
Stock outDetection & Sensor Module, Electronic Parts, ModuleGY-521 MPU6050 3-Axis Accelerometer Gyroscope Module
Out of stockGY-521 MPU6050 3-Axis Accelerometer Gyroscope Module
- Input Voltage : 3.3V-5V
- Operating Current : 3.9mA
- Communication Protocol: I2C
- Power Supply: 4.3 to 9 V (on-board KB33 low dropout regulator)
- Chip built-in 16bit ADC converter, 16-bit data output
- Gyroscope Range: +/-250, +/-500, +/-1000, +/-2000 °/s
- Acceleration Range: +/-2g, +/-4g, +/-8g, +/-16g
SKU: EAP-001054 - Detection & Sensor Module, Electronic Parts, Module
GY-68 BMP180 Barometric Sensor Module
51 in stock- 1.8V to 3.6V Voltage
- Low power consumption – 0.5uA at 1Hz
- I2C interface
- Maximum I2C speed: 3.5Mhz
- Very low noise – up to 0.02hPa (17cm)
- Completely calibrated
- Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
SKU: EAP-001225 - DIY Items, Electronic Parts, Module, Power Supply Module
HI-LINK Power Supply (12V,1.6A)
4 in stock- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
SKU: EAP-000363 - DIY Items, Electronic Parts, Module, Power Supply Module
HI-LINK Power Supply (5V,2A)
10 in stock- Meet UL, CE requirements,
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
SKU: EAP-000362 - DIY Items, Electronic Parts, Module, Power Supply Module
HIECUBE Dual Power Supply (5V/12V, 36W)
In StockDIY Items, Electronic Parts, Module, Power Supply ModuleHIECUBE Dual Power Supply (5V/12V, 36W)
4 in stock- Input voltage: 85-265VAC / 100-370VDC
- Output voltage, Vout1: 5V DC
- Output voltage, Vout2: 12V DC
- Output current, Vout1: 0.5A
- Output current, Vout2: 3.0A
- Power Max: 5W
- Output voltage accuracy: ± 1%
- Size (L x W x H): 48 * 36 * 23mm.
SKU: EAP-000361 - DIY Items, Electronic Parts, Module, Trending Items
IP5306 Mini Power Bank Module (5V,2A)
Out of stock- Charging voltage: DC 4.5V-5.5V (RECOMMENDED DC 5V)
- Charging current: 0-2.1A
- Static charging current: 100µA
- Full voltage: 4.2V+-1%;
- Discharge Static current: 50µA
- Discharge efficiency: Up to 96%
- Output voltage: 5V
- Output current: 0-2.1A;Ambient temperature: -20°to +85°
- Allows discharge while charging
- 4 in 1 Charging / Discharging / Lithium Battery Protection / Battery Level Indicator Module
SKU: EAP-001126 - Battery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items

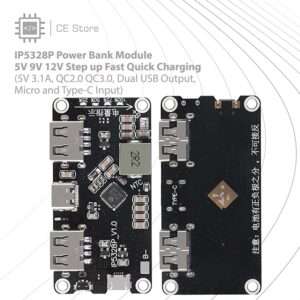

IP5328P Power Bank Module with 5V 9V 12V Step up Fast Quick Charging (5V 3.1A, QC2.0 QC3.0, Dual USB Output, Micro and Type-C Input)
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsIP5328P Power Bank Module with 5V 9V 12V Step up Fast Quick Charging (5V 3.1A, QC2.0 QC3.0, Dual USB Output, Micro and Type-C Input)
30 in stock- Input: Type C or Micro USB fast charging capable
- Output: 5V-3.1A, 7V-2.4A, 9V-2.0A, 12V-1.5A | Output Interface: Dual USB PD output and Type C PD
- Chipset: IP5326P; 4 onboard SMD LED to display battery charge level
- Output Interface: USBA + USBA + TYPE-C support fast charge output (see protocol specification fast charge)
- Overcharge protection | Overdischarge protection | Overcurrent protection
- Size : 64*32*6mm (L*W*H)
SKU: EAP-001025 - Electronic Parts, Module
IR Infrared Obstacle Avoidance Sensor Module
136 in stock- Main Chip: LM393
- Operating Voltage (VDC): 3.6 ~ 5
- Average Current Consumption (mA): 0.06
- Detection Angle: 35 °
- Distance Measuring Range (CM): 2 ~ 30
- Dimensions (mm) LxWxH: 48 x 14 x 8
- Weight (gm): 5
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 5 × 4 × 1 cm
SKU: EAP-000658 - Battery Charging Module, DIY Items, Electronic Parts, Module, Trending Items
J5019 Module (1S Charger + Adj Boost Voltage 4.3~27V)
In StockBattery Charging Module, DIY Items, Electronic Parts, Module, Trending ItemsJ5019 Module (1S Charger + Adj Boost Voltage 4.3~27V)
25 in stock- Input voltage: 4.5-8V
- Output voltage: continuous adjustable 4.3-27V (Counter clockwise to boost voltage)
- Charging voltage: 4.2V
- Charging current: 1A
- Discharge current: 2A
- Output reference maximum current: 5V 1.4A, 9V 0.8A, 12V 0.6A
- Quiescent current: about 0.5 mA
- Overshoot protection: Yes
- Over discharge protection: None
SKU: EAP-001294 - Detection & Sensor Module, Electronic Parts, Module
KY-033 Linetracking sensor
20 in stock- Working voltage: DC 3.3V-5V
- Working current: ≥ 20mA
- Operating temperature: -10℃~+50℃
- Detection distance: 2-40cm
- IO Interface:3-wire interfaces
- Output signal: TTL level (low level there is an obstacle, no obstacle high)
- Adjustment: adjust multi-turn resistance
SKU: EAP-000910 - Electronic Parts, Module, Motor Driver Module
L293D Mini Motor Driver Module
25 in stock- New L293D motor shield, the input voltage DC4.5-25V
- 600mA output current capability per channel
- 1.2A peak output current(non-repetitive) per channel
- Enable facility
- Overtemperature protection
- Logical “0” input voltage up to 1.5V(High noise immunity)
SKU: EAP-000757 - Electronic Parts, Module, Motor Driver Module, Trending Items
L298N Dual H-Bridge Motor Driver Module
In StockElectronic Parts, Module, Motor Driver Module, Trending ItemsL298N Dual H-Bridge Motor Driver Module
199 in stock- Operating supply voltage up to 46 V
- Total DC current up to 4 A. 2A per channel
- Low saturation voltage
- Overtemperature protection
- Logical input voltage up to 1.5 V
- High noise immunity
SKU: EAP-000422 - DIY Items, Electronic Parts, Module, Power Supply Module, Trending Items

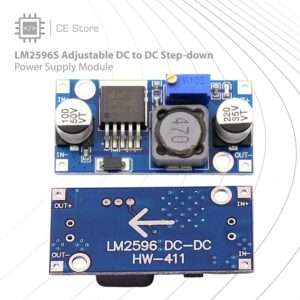

LM2596S DC-DC Step-down Adjustable Power Supply Module
In StockDIY Items, Electronic Parts, Module, Power Supply Module, Trending ItemsLM2596S DC-DC Step-down Adjustable Power Supply Module
20 in stock- Model:LM2596S
- Input voltage: 4-32V
- Output Voltage: 1.5-30V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
- Input way: IN+, IN-
- Output way: OUT+, OUT-
SKU: EAP-000508 - Electronic Parts, Module

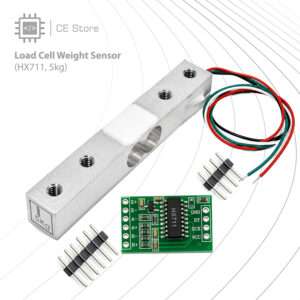

Load Cell Weight Sensor (HX711, 5kg)
Out of stockThe Load Cell Weight Sensor (HX711, 5kg) is a precision weighing kit designed for electronic scales, force measurement, and weight detection applications. It includes a 5kg aluminum load cell sensor, an HX711 24-bit analog-to-digital converter (ADC) amplifier module. The HX711 module amplifies the tiny signal generated by the load cell and converts it into digital data, making it easy to interface with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other microcontrollers.
SKU: EAP-001407 - Electronic Parts, Module
Matrix Keypad Membrane Switch
- Ultra-thin design & adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
- 5 pins 2.54mm pitch connector.
- Sticker can peel off for adhesive mounting.
- Operating Voltage (V): 12 DC
SKU: n/a - Electronic Parts, Module
MAX30100 Pulse Oximeter and Heart Rate Sensor Module
54 in stock- Operating Voltage – 1.8V to 3.3V
- Input Current – 20mA
- Integrated Ambient Light Cancellation
- High Sample Rate Capability
- Fast Data Output Capability
Applications:
- Medical Oxygen measurement devices
- Wearable Devices
- Fitness Assistant systems
SKU: EAP-001057 - Detection & Sensor Module, Electronic Parts, Module, Trending Items
MAX30102 Heart Rate and Pulse Oximeter Module
Stock outDetection & Sensor Module, Electronic Parts, Module, Trending ItemsMAX30102 Heart Rate and Pulse Oximeter Module
Out of stockThe MAX30102 Heart Rate and Pulse Oximeter Module is a high-performance biometric sensor designed to measure heart rate (HR) and blood oxygen saturation (SpO₂). It integrates red and infrared LEDs, a photodetector, optical components, and low-noise analog signal processing into a compact module. With an I2C interface, it can be easily connected to Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers for health monitoring and wearable applications.
SKU: EAP-001403
